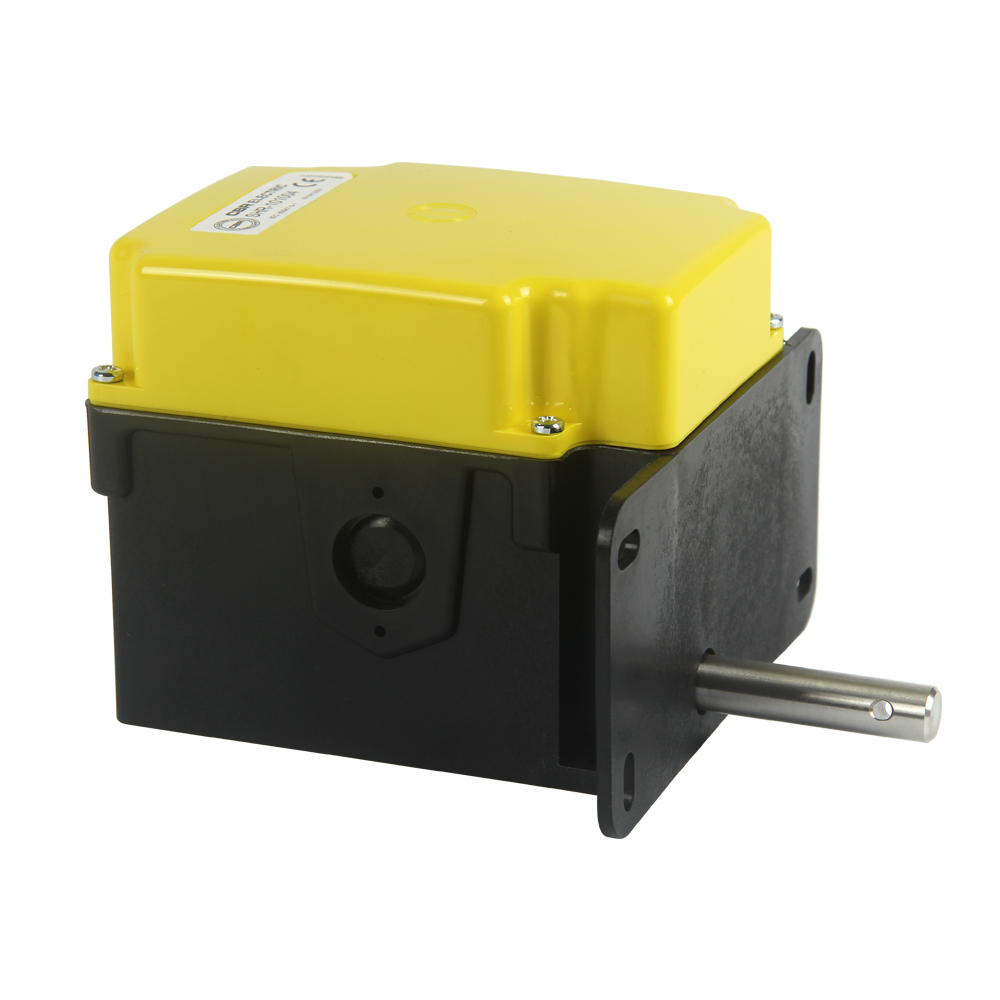

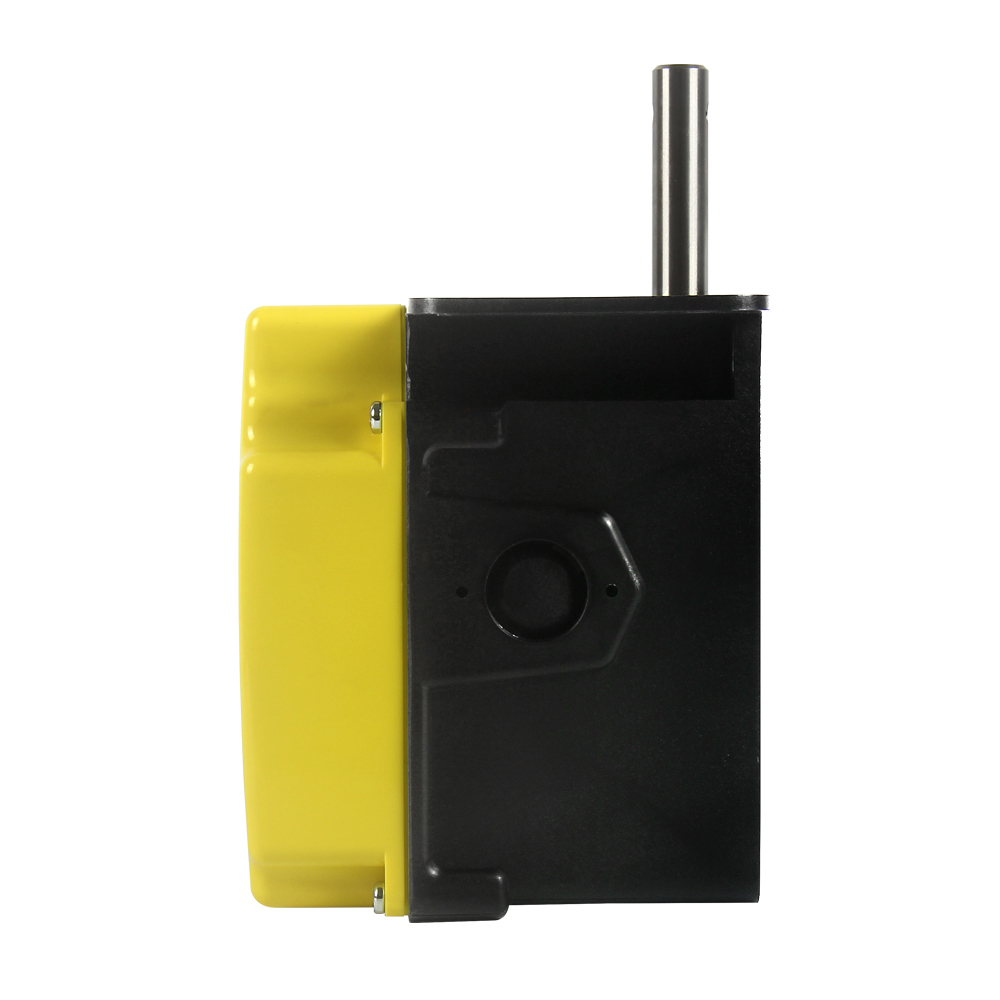

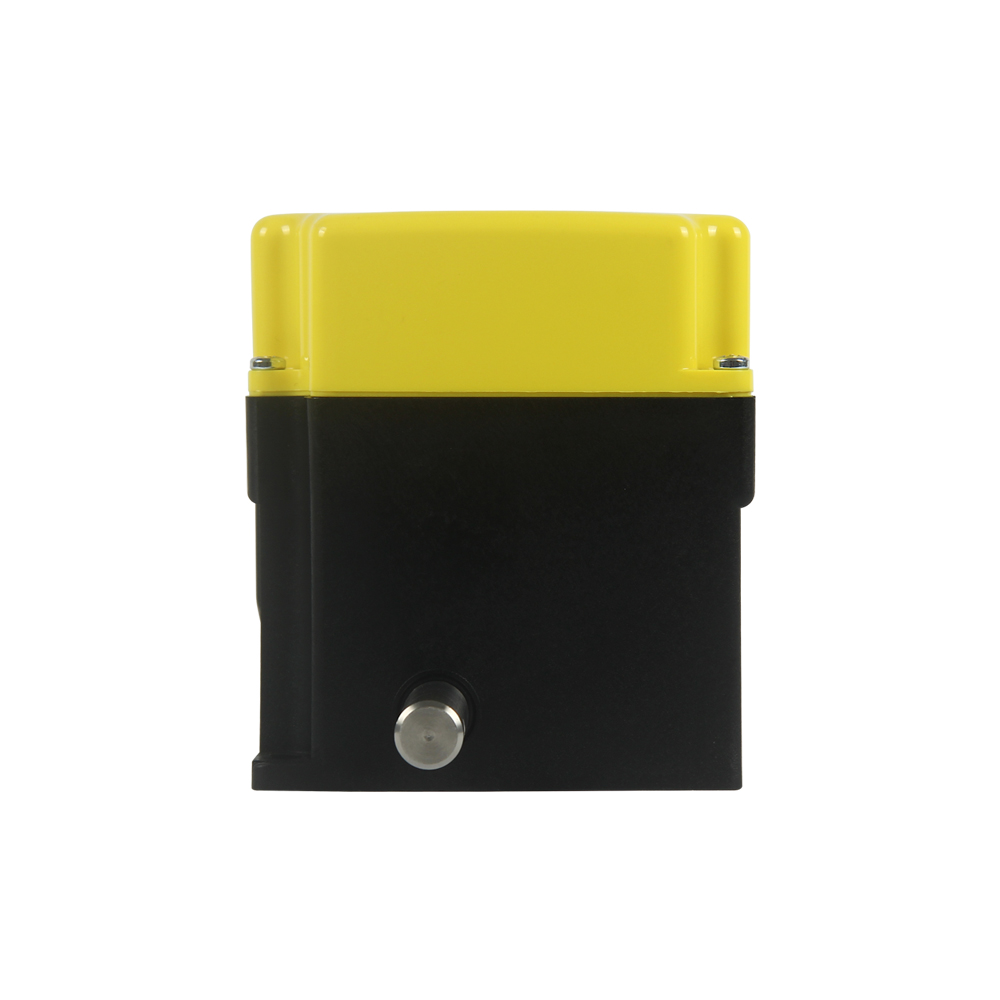

SHR/SHRF
Rotary Gear Limit Switches
The CBR rotary gear limit switch is a device used to control the number of rotation or direction angle of industrial and building machines. A typical application is controlling the position of the rolling shutter door or overhead cranes etc. The unit, through a gear system and cams transmission, controls 2, 4 or more microswitches so that after a definied number of revolutions, it can prepare the motor or the device to start or stop running. The microswitches have a calibration screw that operates independently on each cam; so it can calibrate the opening and closing of each micro according the functional requirements needed. The gear-based transmission system allows you to choose different ratios. It can also be supplied with rear shaft version or complete of linear detector (potentiometer or encoder) too.
| Technical Parameters | |
| Characteristics | |
| Markings | CE |
| Case | thermoplastic glass fiber reinforced |
| Ratio | 012-033-050-075-100-150-200-400 |
| Protection class | IP65 |
| Shaft type | steel (SUS304) |

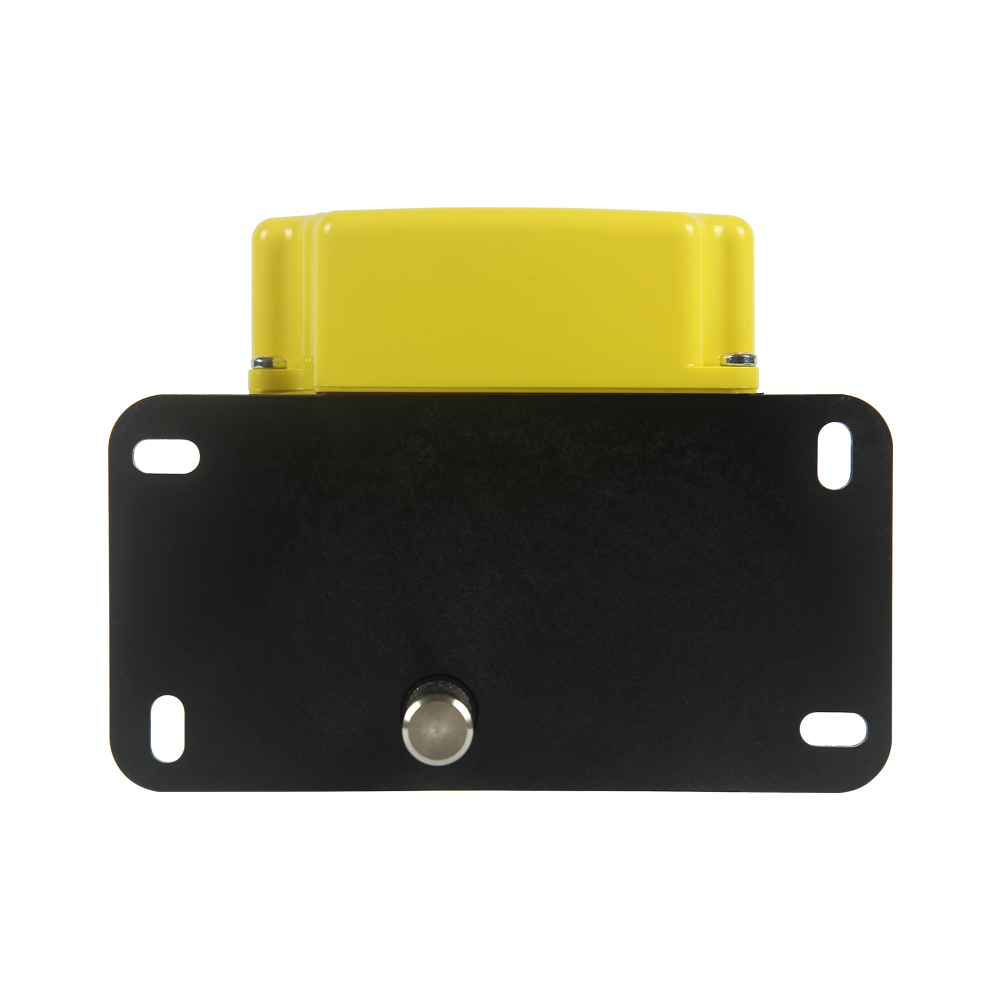

| Fixing type | bottom / front (flanged version) |
| Max n°of microswitch | 4 |
| Climate temperature Operating | -25°C + 70°C |
| Climate temperature Storage | -30°C + 70°C |
| Cable entry | M20 or M16 (max 4) |
| Microswitch cams | self-lubricating |
| Micrometric adjustment screw | zamak material |
| Weight KG (approx) | 0.75 |
| Electrical characteristics | |
| Microswitch product ID | MFI.3 - Giovenzana line wheel drive control (long life) |
| Standards | IEC/EN 61058-1, UL 1054 |
| Markings | CE |
| Rated insulation voltage [Ui] | 250V |
| Rated thermal current [Ith] | 16A |
| Rated operating current Resistive load | 16A-250VAC |
| Inductive load | 4A-250VAC |
| Positive opening contacts | |
| Contact block function | 1NC+1NO changeover fast trigger |
| contact | silver plated / self cleaning |
| connections | fast-on 0.8*6.3mm |
| Options | |
| Rear shaft | available |
| Potentiometer | 2.5 / 5 / 10 kΩ (*) |
| Encoder | - |
| Cam’s shape/Pinion available | 5/15 |
